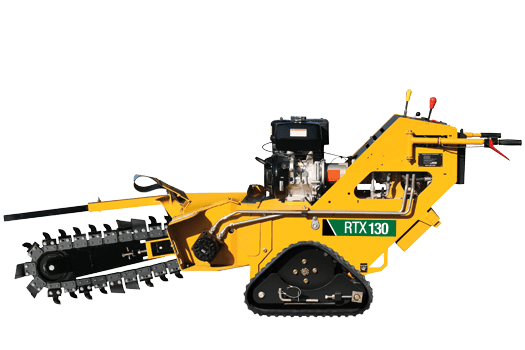

Powered by a 13-hp (9.7-kW) Honda engine, this unit offers a 30-in (76.2-cm) digging depth and has the ability to maneuver in tight spaces at a 35-in (88.9-cm) width. The intuitive design of the industry-exclusive VZ steering allows ease of movement through difficult ground conditions. This machine also offers the option of tires or tracks to give operators the versatility to take on their jobsite challenges.
| Manufacturer | Vermeer |
| Model | RTX130 Pedestrian Trencher |
| Category | Landscape, Rental |
| Price | Request a Quote |
| Year | 2024 |
| Displacement | 23.7cu-in (.4L) |
| Fuel Type | Gasoline |
| Maximum Operating Angle (Left/Right)* | 20deg |
| Maximum Operating Angle (Fore/Aft)* | 20deg |
| Make and Model | Honda GX390 |
| Number of Cylinders | 1 |
| Cooling Medium | Forced Air |
| Gross Horsepower | 13hp (9.7kw) |
| Horsepower at Maximum RPM (Gross) | 13hp (9.7kw) |
| Ground Drive Type | Hydrostatic |
| Clutch Type | none |
| Maximum Reverse Transport Speed at Full Throttle | 1mph (1.6km/h) |
| Maximum Forward Transport Speed at Full Throttle | 3.1mph (5km/h) |
| Height | 46in (116.8cm) |
| Tread Width with Rubber Tires (Centerline to Centerline) | 8.5in (21.6cm) |
| Wheel Base From Centerline of Axles | 33.2in (84.3cm) |
| Length (Tractor with Tires) | 83in (210.8cm) |
| Width (Over Rubber Tracks) | 35in (88.9cm) |
| Width (Over Rubber Tires) | 35in (88.9cm) |
| Weight (Tractor with Tires) | 880lbs (399.2kg) |
| Attachment Pump Relief Pressure (Trencher/Forward) | 2500psi (172.4bar) |
| Ground Drive Pump Relief Pressure Forward/Reverse | 2400psi (165.5bar) |
| Ground Drive Pump gpm at Maximum Engine RPM | 5.4gpm (20.4L/min) |
| Hydraulic Supply Filter Rating | 100 mesh strainer |
| Attachment Pump gpm at Maximum Engine RPM | 8gpm (30.3L/min) |
| Hydraulic Return Filter Rating | 3 micron |
| Hydraulic System | 11.3gal (42.6L) |
| Hydraulic Tank | 10.8gal (40.7L) |
| Fuel Tank | 1.6gal (6.1L) |
| Engine Oil | .3gal (1.1L) |
